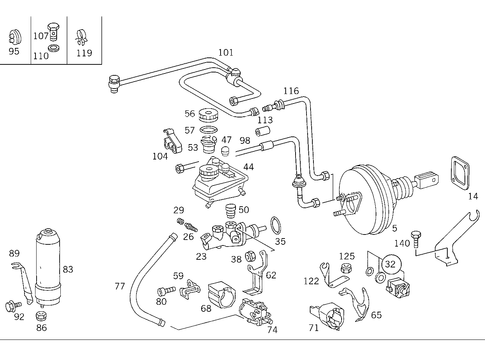

Brake Booster for 1984 Mercedes-Benz 500 SEC
No.
Part # / Description / Price
Price
14
Gasket
Mercedes-Benz
Mercedes-Benz Description: Brake booster assembly to fire wall to 0034302430/9230/0044300030/0830. Brake booster assembly to fire wall to 0034302430/0044300030/0730/0830. Brake booster assembly to fire wall to 004 430 00 30/08 30. Brake booster assembly to fire wall to 003 430 24 30/004 430 07 30/08 30. Between brake unit and firewall. Brake booster assembly to fire wall to 0034302430/0044300830/3130/3530. Brake booster assembly to fire wall to 003 430 92 30,004 430 22 30.
MSRP $7.50
$6.21
MSRP $7.50
$6.21
23
Parts Kit, Mst Brake Cylinder Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
23
Parts Kit, Mst Brake Cylinder Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
35
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: MASTER CYLINDER TO BRAKE BOOSTER. 44 X 2.6
Diameter: 49,6mm
Inside diameter: 44,4mm
Outside diameter: 49,6mm
Material thickness: 3,1mm.
Diameter: 49,6mm
Inside diameter: 44,4mm
Outside diameter: 49,6mm
Material thickness: 3,1mm.
MSRP $12.00
$9.66
MSRP $12.00
$9.66
35
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: SENSOR
Inside diameter: 43,7mm
Outside diameter: 48,7mm
Material thickness: 2,5mm. Seal ring, master brake cylinder
Inside diameter: 43,7mm
Outside diameter: 48,7mm
Material thickness: 2,5mm.
Inside diameter: 43,7mm
Outside diameter: 48,7mm
Material thickness: 2,5mm. Seal ring, master brake cylinder
Inside diameter: 43,7mm
Outside diameter: 48,7mm
Material thickness: 2,5mm.
38
MSRP $3.90
$3.17
44
Reservoir Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
44
Container Mercedes-Benz
Mercedes-Benz Notes: ORDER WHEN USING CASE OR STRAINER
Description: With warning system.
MSRP $199.00
$151.13
MSRP $199.00
$151.13
50
Bush Without Chamfer Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Brake master cylinder. Brake fluid reservoir. Expansion reservoir to master cylinder. E50 amg.
MSRP $11.00
$8.83
MSRP $11.00
$8.83
53
Brake Master Cylinder Reservoir Strainer Mercedes-Benz
Mercedes-Benz Description: Coupe, convertible,. Expansion reservoir. Container. In compensation reservoir. Brake fluid reservoir. Teves. Expansion tank.
56
Reservoir Cap Mercedes-Benz
Mercedes-Benz Description: Expansion tank. Brake fluid reservoir. Sedan,. Container. To expansion reservoir.
MSRP $15.00
$12.14
MSRP $15.00
$12.14
57
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: To 000 431 54 33. Up to chassis 8509058. Up to chassis 8507264.
MSRP $2.40
$1.93
MSRP $2.40
$1.93
59
Holder Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Top.
62
Holder Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Bottom.
65
Bracket Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Bottom.
68
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
71
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
NO LONGER AVAILABLE
NO LONGER AVAILABLE
77
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: 125 mm. 7x3,5mm. 110mm. 7x3,5mm. From supply tank to master cylinder. 7x3,5mm. From reservoir to master cylinder 300mm. 7x3,5mm.
MSRP $3.90
$3.17
MSRP $3.90
$3.17
80
Screw Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
ORDER BY THE METER
ORDER BY THE METER
Description: M6x8. Bracket to rear axle housing. Bracket on rear axle. Door handle to door.
MSRP $27.00
$22.08
MSRP $27.00
$22.08
86
Air Cleaner Assembly Nut Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Bracket to frame m 6.
89
92
Screw Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Bracket to engine.
95
Grommet Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Brake line to accumulator bracket. Spacing of brake lines.
98
Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: From intake manifold to brake booster assembly.
MSRP $134.00
$105.60
MSRP $134.00
$105.60
140
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Amplifier at c-pillar. Amplifier to bracket. Reinforcem. At bracket, left.
MSRP $3.50
$2.90
MSRP $3.50
$2.90
143
Hydraulic Unit Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: (hydraulic unit) abs. Anti-lock braking system.
146
Hydraulic Unit Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: (hydraulic unit) asr.
149
Hydraulic Unit Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
Description: Ets/asr. Asr 5.
155
Bleed Valve Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
164
Protective Cap Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
167
Relay Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: (engine relay) to 001 431 51 12. Return flow pump abs (bosch). Asr/esp.
MSRP $60.00
$47.88
MSRP $60.00
$47.88
167
Relay Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Solenoid valve.
MSRP $87.00
$68.64
MSRP $87.00
$68.64
170
Protective Cap Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
173
Clamp Mercedes-Benz
Mercedes-Benz Description: Electric cable to hydraulic unit. To 001 431 80 12. 24mm. Rubber bumper.
176
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Hydraulic unit to bracket. Brake power regulator to bracket. Fastening brake hose from hydraulics unit to brake unit.
179
Rubber Bumper Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
Description: Hydraulic unit to bracket. Fixture hydraulic unit.
182
Threaded Union Mercedes-Benz
Mercedes-Benz Notes: UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
Description: Hydraulic unit to bracket. Brake power regulator to bracket. Fastening brake hose from hydraulics unit to brake unit.
206
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Service valve to bracket. Charge plunger unit esp. Control valve to frame.
1 This price excludes a refundable manufacturer's core charge. Add the part to your cart to see the core charge.
No.
Part # / Description / Price
Price
107
Banjo Bolt Mercedes-Benz
Mercedes-Benz Description: High-pressure hose on steering. Line to steering. At transmission oil cooler connection.
110
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: OIL LINE TO CONVERTER HOUSINGStrength / hardness class: ALInside diameter: 14mmOutside diameter: 20mmMaterial thickness: 1,5mm. TRANSMISSION OIL COOLERStrength / hardness class: ALInside diameter: 14mmOutside diameter: 20mmMaterial thickness: 1,5mm. THERMO ...
MSRP $1.70
$1.38
MSRP $1.70
$1.38
No.
Part # / Description / Price
Price
38
MSRP $3.90
$3.17
