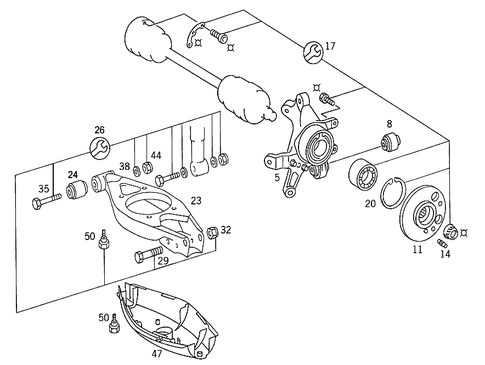

Rear Axle Mount for 1989 Mercedes-Benz 190 E
No.
Part # / Description / Price
Price
N/A
Parts Kit, Tension Strut
Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Camber strut. Mounting parts pushing strut.
MSRP $30.00
$24.84
MSRP $30.00
$24.84
N/A
MSRP $62.00
$49.21
N/A
Wheel Carrier Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: With lower control arm joint and wheel mounting,right.
N/A
MSRP $9.50
$7.87
N/A
Spring Link Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Spring control arm.
N/A
Bolt Mercedes-Benz
Mercedes-Benz Notes: UP UNTIL BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Camber struts to wheel bearing m 10x75.
N/A
Cap Screw Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: M12x1.5x80. Camber struts to wheel carrier left. Thrust arm to wheel bearing to a 220 350 31 06. Camber struts to wheel bearing m 12x1,5x80.
MSRP $17.50
$14.49
MSRP $17.50
$14.49
N/A
Washer Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: PIVOT PIN TO FRONT SUBFRAME
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm. CLAMP TO BRACKET
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm.
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm. CLAMP TO BRACKET
Diameter: 12mm
Strength / hardness class: 200 HV
Inside diameter: 13mm
Outside diameter: 20mm
Material thickness: 2mm.
MSRP $4.00
$3.31
MSRP $4.00
$3.31
N/A
Control Arm Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE; ORDER INDIVIDUAL PARTS
Description: (parts kit),camber strut,left.
N/A
Window Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Camber struts to wheel bearing. Camber struts to wheel carrier left.
MSRP $3.00
$2.48
MSRP $3.00
$2.48
N/A
N/A
Handle Bar Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Left.
MSRP $55.00
$43.23
MSRP $55.00
$43.23
N/A
Wheel Carrier Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: With lower control arm joint and wheel mounting,left.
MSRP $910.00
$566.25
MSRP $910.00
$566.25
N/A
Hexagon Nut Mercedes-Benz
Mercedes-Benz Notes: UP UNTIL BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Stiffening support to body side member.
MSRP $5.50
$4.42
MSRP $5.50
$4.42
N/A
Control Arm Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE; ORDER INDIVIDUAL PARTS
Description: (parts kit),camber strut,right.
N/A
Control Arm Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE; ORDER INDIVIDUAL PARTS
Description: (parts kit), spring control arm.
N/A
Clamping Sleeve Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Mounting parts.
MSRP $3.20
$2.62
MSRP $3.20
$2.62
8
Supporting Joint Mercedes-Benz
Mercedes-Benz Description: Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
MSRP $72.00
$57.19
MSRP $72.00
$57.19
17
Collar Nut, Prop Shaft Mercedes-Benz
Mercedes-Benz Description: Left. Axle shaft to rear axle shaft flange m24x1.5.
MSRP $7.25
$5.93
MSRP $7.25
$5.93
20
MSRP $8.50
$7.04
24
MSRP $3.20
$2.62
29
Flat Head Screw Mercedes-Benz
Mercedes-Benz Description: M14x1.5x90. Spring control arm to wheel bearing left. Spring control arm to wheel bearing m 14x1,5x75.
MSRP $17.50
$14.49
MSRP $17.50
$14.49
32
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to front subframe. Shock absorber to frame. Lower control arm to steering knuckle.
35
Screw Mercedes-Benz
Mercedes-Benz Description: Spring control arm to rear subframe. Axle housing to rear subframe,rear m 12 x 1,5 x 85.
MSRP $27.00
$22.08
MSRP $27.00
$22.08
44
Hexagon Nut Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Spring control arm to rear subframe. Upper transverse control arm to steering knuckle. Lower control arm to steering knuckle. Torsion bar to frame. Lower joint to control arm. Joint to steering knuckle. Shock absorber to lower control arm.
MSRP $7.50
$6.21
MSRP $7.50
$6.21
50
Screw Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Protective plate to spring control arm. Covering to spring control arm. Trim mount to left spring link. Mounting, cover. Guard to left spring link. Cover on spring link and thrust arm. At left side member.
MSRP $3.40
$2.76
MSRP $3.40
$2.76
51
54
Window Mercedes-Benz
Mercedes-Benz Notes: UP UNTIL BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Camber struts to wheel bearing.
MSRP $4.20
$3.45
MSRP $4.20
$3.45
56
MSRP $37.50
$31.05
62
Washer Mercedes-Benz
Mercedes-Benz Notes: UP UNTIL BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
MSRP $2.70
$2.21
MSRP $2.70
$2.21
65
Nut Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Steering shock absorber to front axle. Steering shock absorber to drag link and to frame.
65
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
MSRP $4.40
$3.59
MSRP $4.40
$3.59
68
Cap Screw Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Thrust arm, camber strut and strut on rear subframe. M12x1.5x60. Camber struts to rear subframe. Thrust arm/camber strut/tension rod to rear-axle bracket. Thrust arm to rear subframe.
MSRP $6.25
$5.11
MSRP $6.25
$5.11
74
Handle Bar Mercedes-Benz
Mercedes-Benz Notes: AFTER BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Left.
MSRP $37.50
$31.05
MSRP $37.50
$31.05
77
Screw Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Thrust arm to wheel bearing to a 140 350 54 06. Strut to wheel bearing m 12x1,5x77. Strut to wheel bearing m 12 x 1,5.
80
Window Mercedes-Benz
Mercedes-Benz Notes: UP UNTIL BOLTED CONNECTIONS ON WHEEL CARRIER,THRUST ARM,CAMBER ARM AND RADIUS ROD WERE STANDARDIZED FROM M10 TO M12
Description: Strut to wheel bearing.
95
MSRP $95.00
$75.24
98
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: Repair size. With eccentric interior bushing. Tie rod to rear subframe. Left and right.
MSRP $26.00
$21.39
MSRP $26.00
$21.39
98
Rubber Bushing Mercedes-Benz
Mercedes-Benz Description: Repair size. Tie rod. With eccentric interior bushing left. For adjusting work only.
MSRP $142.00
$112.20
MSRP $142.00
$112.20
104
Parts Kit, Eccent Screw Mercedes-Benz
Mercedes-Benz Description: Tie rod to rear subframe. For adjusting work only.
MSRP $27.50
$22.77
MSRP $27.50
$22.77
131
MSRP $3.00
$2.48
No.
Part # / Description / Price
Price
N/A
Sealing Ring Mercedes-Benz
Mercedes-Benz Notes: FOR SUBSEQUENT INSTALLATION IN CASE OF BAD ROAD CONDITIONS
Description: Leather cover. Left and right.
8
Supporting Joint Mercedes-Benz
Mercedes-Benz Description: Left and right. Spring control arm to wheel bearing. Left suspension strut. Wheel carrier. Left spring link.
MSRP $72.00
$57.19
MSRP $72.00
$57.19
35
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: M12X1.5 X 90
Diameter: 12mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to rear subframe m 12x1,5x90. Spring control arm to rear subframe m12 x 1,5 x 90.
Diameter: 12mm
Strength / hardness class: 8.8
Thread code letter: M
Thread pitch: 1,5mm. Spring control arm to rear subframe m 12x1,5x90. Spring control arm to rear subframe m12 x 1,5 x 90.
MSRP $13.00
$10.49
MSRP $13.00
$10.49
44
Nut Mercedes-Benz
Mercedes-Benz Notes: IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES
Description: Axle housing to rear subframe,rear to n 000960 012184.
44
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M12x1.5. Tie rod to rear subframe. Spring control arm to rear subframe m 12. Bearing cup to bearing bracket. Steering intermediate arm bearing. Drag link to steering arm. Strut to rear subframe.
MSRP $2.50
$2.07
MSRP $2.50
$2.07
62
Washer Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
MSRP $2.70
$2.21
MSRP $2.70
$2.21
No.
Part # / Description / Price
Price
N/A
Support Mercedes-Benz
Mercedes-Benz Notes: EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS
A 136173 F 040154
