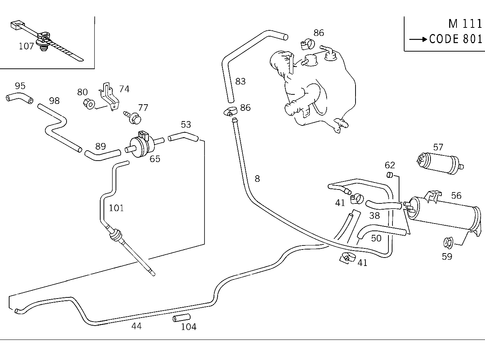

Closed Fuel-Evaporation-Control System for 2002 Mercedes-Benz CLK430
No.
Part # / Description / Price
Price
26
Hose
Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Breather line to breather valve 45 mm. Cexpansion reservoir to activated charcoal filter 45 mm. Vent valve on vent pipe 45 mm. From left regeneration valve to engine 45 mm.
MSRP $23.50
$19.32
MSRP $23.50
$19.32
29
T-Piece Mercedes-Benz
Mercedes-Benz Description: Feed and return lines, breathing. Cexpansion reservoir to activated charcoal filter.
32
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Cexpansion reservoir to activated charcoal filter. 13mm.
MSRP $7.00
$5.80
MSRP $7.00
$5.80
32
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: From reservoir to left rear wheel arch. Breather line to breather valve. Expansion tank 13,2 - 15,7mm.
35
Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Cexpansion reservoir to activated charcoal filter 9- 13 mm. 9-13 mm. Fuel hose to filter 9- 13 mm. 9-13 mm. Return line 9- 13 mm. 9-13 mm. Fuel hose to fuel line. 9-13 mm. From activated charcoal filter to breather line. 9-13 mm. Oil connection hose. 9-13 mm.
MSRP $3.50
$2.90
MSRP $3.50
$2.90
38
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$26.91
MSRP $32.50
$26.91
62
Protective Cap Mercedes-Benz
Mercedes-Benz Description: Fresh air connection. Overflow reservoir to wheel arch. Connector. On activated charcoal filter.
MSRP $4.90
$4.00
MSRP $4.90
$4.00
65
Purge Valve Mercedes-Benz
Mercedes-Benz Description: Regeneration valve. Evaporative emission control system. In engine compartment.
83
MSRP $84.00
$66.50
No.
Part # / Description / Price
Price
14
Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cexpansion reservoir to activated charcoal filter.
17
Line Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
Description: Cexpansion reservoir to activated charcoal filter.
20
23
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Fuel hose to fuel hose. 9x3 mm. At pressure regulator. 9x3 mm. Cexpansion reservoir to activated charcoal filter 40 mm. 9x3 mm.
MSRP $75.00
$59.85
MSRP $75.00
$59.85
41
Binder Mercedes-Benz
Mercedes-Benz Description: Hose to fuel pump. 20.5-21.5 mm. Activated charcoal filter to fuel filler neck 20,5 - 21,5 mm. 20.5-21.5 mm. Hose to activated charcoal filter. 20.5-21.5 mm. Breather line to fuel tank. 20.5-21.5 mm. From fuel tank to additional tank 20,5 - 23,5 mm. 20.5-21.5 mm.
MSRP $3.40
$2.76
MSRP $3.40
$2.76
57
Valve Mercedes-Benz
Mercedes-Benz Description: Shut-off valve. Regeneration valve. Activated charcoal filter on purge line.
MSRP $398.00
$302.26
MSRP $398.00
$302.26
57
MSRP $322.00
$245.11
