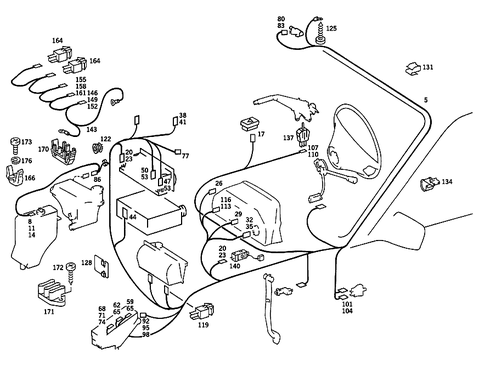

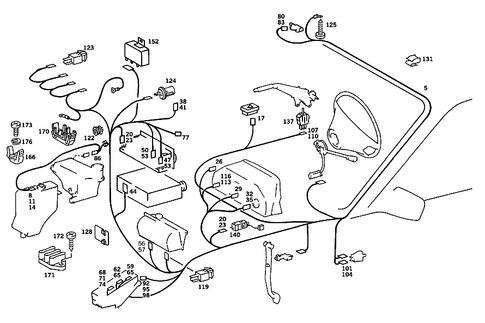

Inboard Cable Harness for 1986 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
N/A
N/A
Electrical Wiring Harness
Mercedes-Benz
Mercedes-Benz Description: (addit. Cable harness) for air conditioner;only with subsequent installation.
N/A
Flat Pin Bushing Mercedes-Benz
Mercedes-Benz Description: TO 008 545 34 28/ 35 28/ 36 28. 0.5 MM2 FF6.3
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
Leitungsquerschnitt Min/Max: 0,5mm2
Oberflächenschutz PINs: Ag
Model 1: FF
Model 2: 6.3.
N/A
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Plug socket 12v. Pass. Left rear reading lamp. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Additional heater control unit. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Radio connection x58/2. 2-pin ff6.3model 1: ffmodel 2: 6.3slots: 2. Front interior socket ...
MSRP $5.25
$4.28
MSRP $5.25
$4.28
N/A
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 240011 F 146210
N/A
Clamp Mercedes-Benz
Mercedes-Benz Description: From front plug connection to fuel pump. 15 x 32 mm. Engine hood. 15 x 32 mm. Cable mounting. 15 x 32 mm. Piping to firewall. 15 X 32 MM. Cable harness to side part. 15 x 32 mm. Water drain, rear. 15 x 32 mm. On left side panel,rear. 15 x 32 mm.
N/A
Receptacle Mercedes-Benz
Mercedes-Benz Description: Tin-plated. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: FFModel 2: 6.3. TO 001 545 10 28,012 545 31 28. 1.5-2.5 MM2 FF6.3Leitungsquerschnitt Min/Max: 1,0-2,5mm2Oberflächenschutz PINs: SnELA: -Model 1: ...
MSRP $2.70
$2.21
MSRP $2.70
$2.21
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 240011 F 146210
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 240011 F 146210
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 240011 F 146210
Description: Inboard;with tempmatik.
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: NO LONGER AVAILABLE
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 240011 F 146210
FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 240011 F 146210
Description: Inboard;with tempmatik.
11
Cap Mercedes-Benz
Mercedes-Benz Description: Blower. 2-pin rk4. Back-up lamp cable. 2-pin rk4. To a 008 545 09 28. 2-pin rk4. To a 008 545 08 28. 2-pin rk4. Secondary air pump m33. 2-pin rk4. To 008 545 08 28/008 545 09 28. 2-pin rk4. Air injection m33. 2-pin rk4.
14
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4,0 MM. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52. TO 008 545 08 28,000 821 22 26. 0.35-6.0 MM2 RK4.0
Leitungsquerschnitt Min/Max: 0,35-6,0mm2
Oberflächenschutz PINs: Ag
ELA: -
Model 1: RK
Model 2: 4.0
Release tool: W220 589 01 99 52.
MSRP $3.40
$2.76
MSRP $3.40
$2.76
17
Receptacle Housing Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS ON VEHICLES LESS AUTOMATIC LIMITED-SLIP DIFFERENTIAL
Description: Hazard warning light switch. Hazard warning light. 8-pole.
20
Housing Lower Part Mercedes-Benz
Mercedes-Benz Description: Buzzer contact;2-pole. 2-pin. Central locking system. 2-pin. Evaporator temperature sensor. 2-pin. Solenoid valve,bipolar. 2-pin. Temperature sensor;2-pole. 2-pin. Heating water valve,temperature sensor,electro-magnet valves;bipolar. 2-pin.
MSRP $3.20
$2.62
MSRP $3.20
$2.62
23
Coupling, Mechanical Mercedes-Benz
Mercedes-Benz Description: To 010 545 10 28. Upper part. To 008 545 37 28. Buzzer contact.
MSRP $2.40
$1.93
MSRP $2.40
$1.93
26
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Dome lighting. Dome lamp. Blinker light and speedometer. Time-lag relay.
29
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Instrument cluster;4-pole. 4-pin rk2.5. Right rear heated seat connector x54/24. 4-pin rk2.5. Folding top case cover switch cluster. 4-pin rk2.5. Loudspeaker to front door. 4-pin rk2.5. Micro-switch connection. 4-pin rk2.5. Brake master cylinder. 4-pin rk2.5.
32
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Instrument cluster nr.1. Instrument cluster;4-pole. 15-pole.
44
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Amplifier. 4-pin. Cd changer. 4-pin. Info module asr. 4-pin. Function control 4-matic. 4-pin. Timer,heater. 4-pin. Radio current supply. 4-pin. Additional heater preset time switch. 6-pole. 4-pin. 3-pole. 4-pin.
47
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Heating water valve. 4-pole. 4-pin. Outside temperature indicator. 4-pin. Cryostat. 4-pin. Tempmatik control box. 4-pin. Speedometer. 4-pin. Quadruple. 4-pin.
MSRP $2.90
$2.35
MSRP $2.90
$2.35
53
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 2.5 M. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. TO 201 540 02 81. 0.35-2.5 MM2 RK2.5Leitungsquerschni ...
MSRP $2.70
$2.21
MSRP $2.70
$2.21
65
Contact Socket Mercedes-Benz
Mercedes-Benz Description: 4 MM. 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Max: 0,35-2,5mm2Oberflächenschutz PINs: AgELA: -Model 1: RKModel 2: 2.5Release tool: W220 589 01 99 30 / W220 589 01 99 53Crimp tool: W220 589 01 99 06. 2,5 (AX). 0.35-2.5 MM2 RK2.5Leitungsquerschnitt Min/Ma ...
MSRP $2.90
$2.35
MSRP $2.90
$2.35
71
Housing Upper Part Mercedes-Benz
Mercedes-Benz Description: To 008 545 20 28,011 545 10 28. Rear fuel pump cable harness plugconnection.
MSRP $2.70
$2.21
MSRP $2.70
$2.21
74
Plug Pin Mercedes-Benz
Mercedes-Benz Description: To 011 545 10 28. 4.0 mm. To 009 545 14 28. Tempomat(cruise control) plug-connect. To 012 545 84 28. 4.0mm2.
83
MSRP $3.00
$2.48
95
Cap Mercedes-Benz
Mercedes-Benz Description: Back-up lamp cable. To 007 545 00 28, 015 545 49 28. To 006 545 78 28. Fuel gauge sender unit. 4-pole to 015 545 49 28. Quadruple to 009 545 52 28. To 015 545 49 2,. Turn signal and side marker lamps left. To 009 545 52 28 (asd).
MSRP $5.00
$4.14
MSRP $5.00
$4.14
98
MSRP $3.70
$3.06
107
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Antenna amplifier a2/18. 1-pin. Luggage compartment lamp. 1-pin. Parking brake control. 1-pin. Parking brake switch s12. 1-pin. To 002 545 94 26. 1-pin. Pressure switch,coolant compressor. 1-pin.
110
Female Spade Connector Mercedes-Benz
Mercedes-Benz Description: Hand-brake-control switch. Trunk lighting. Parking brake switch to 004 545 20 26. Offset. 0.5-1.5mm2. Parking brake control.
119
131
137
Switch Mercedes-Benz
Mercedes-Benz Description: Foot-operated parking brake. Interior lamp. With rest contact,for engine compartment and instrument panel. Parking brake control. Door contact switch. Hand brake. Burglary alarm system (edw). Electric window regulator to front panel left pillar.
MSRP $11.50
$9.38
MSRP $11.50
$9.38
155
Receptacle Housing Mercedes-Benz
Mercedes-Benz Description: Heating control lighting. 2-pin. Regulating valve. 2-pin. Safety switch. 2-pin. Clutch "2". 2-pin. Lighting of gear indicator. 2-pin.
164
Socket Mercedes-Benz
Mercedes-Benz Description: Air nozzle lighting. Lighting of rotary light switch escutcheon. Cigar lighter. Ashtray lighting. Lighting of gear indicator. Heating control lighting.
166
Line Connector Mercedes-Benz
Mercedes-Benz Description: Main cable harness to heating. Heated rear window pane cable. Windshield. Rear window pane connecting cable to cable harness in rear panel door. Terminal "58 d". Lighting of heater case operating unit. Heater case,left. Terminal "58d".
170
170
Line Connector Mercedes-Benz
Mercedes-Benz Description: Electric cable regulator cable. Stop-light/speed signal. Motor connection,left and right front doors. Bipolar. At bracket. To floor panel in legroom. Cable harness to front door. Electric cable to rear door interior plate. Terminal "58d".
171
Cable Connector Mercedes-Benz
Mercedes-Benz Notes: FROM IDENT NO. (NEW EQUIPMENT 9/85)
F 146211
Description: Bipolar. At left wheel arch panel. Double. Terminal td. Two-pole. On front door. Terminal "58d".
172
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Ashtray to housing. Defroster nozzle to instrument panel.
MSRP $1.50
$1.24
MSRP $1.50
$1.24
173
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Fastening for lining. M4 x 8 mm. Shell to reservoir. To mounting. To reinforcement.
MSRP $1.40
$1.10
MSRP $1.40
$1.10
176
Spring Lock Washer Mercedes-Benz
Mercedes-Benz Description: Cables to cable connector. At front center stiffening. Blinker & tempomat switches to steering column jacket tube. Cable to resistor. Main cable harness to radiator baffle, right. Starting cable to cable connector.
MSRP $1.40
$1.10
MSRP $1.40
$1.10
No.
Part # / Description / Price
Price
5
Wiring Harness Mercedes-Benz
Mercedes-Benz Notes: UP TO END OF MODEL YEAR'86
NO LONGER AVAILABLE
NO LONGER AVAILABLE
Description: Engine cable harness. Inboard.
124
Socket Mercedes-Benz
Mercedes-Benz Description: Pre-glow indicator. Tell-tale lamp. Blinker control. Safety belt warning lamp. Emergency lantern. Overheat warning indicator. (oxygen sensor exchange indicator). Catalyst exchange indicator.
140
Buzzer Switch Mercedes-Benz
Mercedes-Benz Description: Warning buzzer. Buzzer contact. Steering lock.
MSRP $11.50
$9.38
MSRP $11.50
$9.38
152
MSRP $135.00
$106.92
