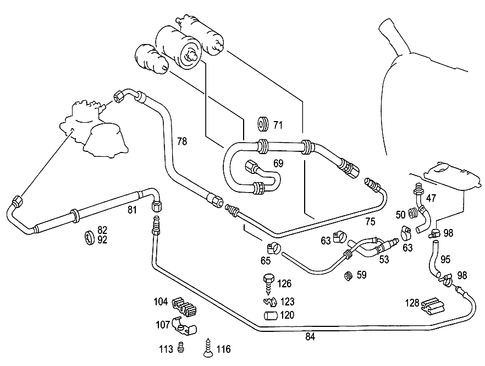

Fuel Lines for 1986 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
50
Feed-Through Grommet
Mercedes-Benz
Mercedes-Benz Description: From expansion tank to additional tank. Right. For molded hose. Line to rear floor center. Fastening, cable, rear center. High pressure expansion hose & connecting hose to side member. Oelverbindungsschlauch durch traeger oelvorratsbehaelter.
MSRP $4.40
$3.59
MSRP $4.40
$3.59
59
Feed-Through Grommet Mercedes-Benz
Mercedes-Benz Description: For water drain pipe opening in body front end from chassis 8512055. Cable through vehicle floor. Overflow reservoir to wheel arch. Hose. Rear lamp cable harness to rear body panel. Cable to alternator. Cable harness thru rear door interior plate. From expansion tank to overflow reservoir. Mounting pipe line. At bottom covering, for radiator circulating air.
MSRP $2.20
$1.79
MSRP $2.20
$1.79
62
Clamp Mercedes-Benz
Mercedes-Benz Description: Between control valve and heat exchanger 21/9. From fuel tank to fuel pump 12 x 9 mm. Heat exchanger,left 21/9. From damper cage to fuel feed pump. From fuel tank to damper cage.
65
Clamp Mercedes-Benz
Mercedes-Benz Description: HOSE TO ACCUMULATOR & DAMPER CAGEDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. CONNECTING PIPE ON BRACKETDiameter: 11mmMaterial thickness: 0,4mmWidth across flats: SW7. FROM ACCUMULATOR TO DAMPER CAGE & VALVEDiameter: 11mmMaterial thickne ...
95
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$26.91
MSRP $32.50
$26.91
98
Hose Clamp Mercedes-Benz
Mercedes-Benz Notes: NOT FOR RETROFIT/CATALYST VEHICLES
Description: Cexpansion reservoir to activated charcoal filter 9- 13 mm. 9-13 mm. Fuel hose to filter 9- 13 mm. 9-13 mm. Return line 9- 13 mm. 9-13 mm. Fuel hose to fuel line. 9-13 mm. From activated charcoal filter to breather line. 9-13 mm. Oil connection hose. 9-13 mm.
MSRP $3.50
$2.90
MSRP $3.50
$2.90
100
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
MSRP $24.50
$20.01
MSRP $24.50
$20.01
100
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
NOT FOR RETROFIT/CATALYST VEHICLES
NOT FOR RETROFIT/CATALYST VEHICLES
Description: Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
101
MSRP $5.50
$4.42
104
Damping Strip Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: Fuel lines to vehicle floor.
107
Clamp Mercedes-Benz
Mercedes-Benz Description: Fuel line to floor,right. Fuel lines to vehicle floor. Brake line to cross member.
MSRP $1.20
$0.97
MSRP $1.20
$0.97
110
Clamp Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: To firewall and longitudinal member. Fuel line to floor,right. Brake and fuel lines to vehicle floor.
MSRP $2.00
$1.66
MSRP $2.00
$1.66
113
Tensioner Mercedes-Benz
Mercedes-Benz Description: Underbody left. Fuel line to floor,right. To mount fuel lines. In wheelhouse front left. To firewall and longitudinal member. Brake line to cross member.
MSRP $5.00
$4.14
MSRP $5.00
$4.14
120
Clamp Mercedes-Benz
Mercedes-Benz Description: Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
123
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
MSRP $1.70
$1.38
MSRP $1.70
$1.38
128
Damping Strip Mercedes-Benz
Mercedes-Benz Description: Fuel lines under steering. Brake line fastening. Regeneration line to frame. To mount fuel lines.
MSRP $1.90
$1.52
MSRP $1.90
$1.52
