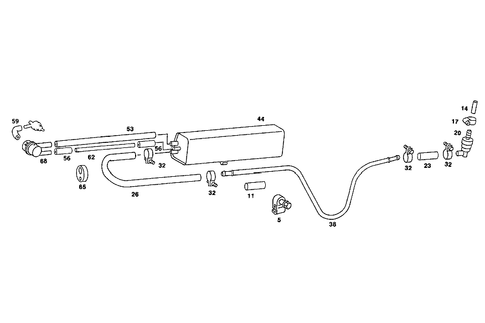

Closed Fuel-Evaporation-Control System for 1986 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
5
Hose
Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: Activated charcoal filter for purge line. 15,3X3MM. Hose to valve 55mm. 15,3x3mm. Feed and return lines, breathing 55mm. 15,3x3mm. Return line to fuel filter 200mm. 15,3x3mm. Vent pipe fuel tank to t-fitting or vent valve 50mm. 15,3x3mm. Vent line 45 mm. 15,3x3mm. Purge line to check valve. 15,3x3mm. From activated charcoal filter to regeneration line. 15,3x3mm.
MSRP $24.50
$20.01
MSRP $24.50
$20.01
5
Hose Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
ORDER BY THE METER
ORDER BY THE METER
Description: Breather line to tank vent pipe 120 mm. Ventilation. (vent line) from activated charcoal filter to boot 590 mm. 50mm. Breather line to tank breather pipe, 80 mm. Rear breather line to vent valve 190 mm. (vent line) from activated charcoal filter to boot 630 mm. From activated charcoal filter to breather line 210 mm. From activated charcoal filter to breather line 250 mm. Return 240 mm.
8
Spring Hose Clamp Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: Hose to fuel tank. Suction hose to induction line. Feed and return lines, breathing. From fuel tank to breather valve. (vent line) from activated charcoal filter to boot. Vent pipe fuel tank to t-fitting or vent valve. Vent hose to activated charcoal filter.
MSRP $3.00
$2.48
MSRP $3.00
$2.48
11
Valve Mercedes-Benz
Mercedes-Benz Notes: ONLY ON RETROFIT/CATALYST VEHICLES
Description: (vent valve). Ventilation. Vent line.
MSRP $30.00
$24.84
MSRP $30.00
$24.84
14
Hose Mercedes-Benz
Mercedes-Benz Notes: ORDER BY THE METER
Description: 160 mm. 13.3x3 mm. From fuel filter to feed line. 13.3x3 mm. 300 mm. 13.3x3 mm. 110mm. 13.3x3 mm. Order by the meter. 13.3x3 mm. 250 mm. 13.3x3 mm. From activated charcoal filter to regeneration valve. 13.3x3 mm. 100 mm from fuel return line to fuel tark. 13.3x3 mm.
MSRP $32.50
$26.91
MSRP $32.50
$26.91
17
Spring Hose Clamp Mercedes-Benz
Mercedes-Benz Description: Between combination valve and breather pipe. Regeneration valve. Return hose to return line. From fuel tank to breather valve.
MSRP $4.00
$3.31
MSRP $4.00
$3.31
23
Molded Hose Mercedes-Benz
Mercedes-Benz Description: From activated charcoal filter to breather line. Engine to regeneration valve. Distributor to regeneration valve,left.
MSRP $11.50
$9.25
MSRP $11.50
$9.25
30
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to wheelhouse. 6.3x22. Bumper in wheel housing, side end. 6.3x22.
38
MSRP $19.50
$15.87
65
Clamp Mercedes-Benz
Mercedes-Benz Description: Condensed water drain. Compressor-to-condenser refrigerant line to condenser. Starting cable to side member.
68
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Front fender to bumper bracket. Front fender partition panel to wheelhouse. Front fender to wheelhouse,bottom front. Bracket to frame. 6,3 x 13. Bracket to cowl. As required. 6.3x13. Bracket to wheel arch panel.
MSRP $1.70
$1.38
MSRP $1.70
$1.38
70
Clamp Mercedes-Benz
Mercedes-Benz Description: Feed line to fire wall. Fuel lines on floor under fuel tank. Breather line under rear floor. (vent line) from activated charcoal filter to boot. Brake and fuel lines to vehicle floor.
No.
Part # / Description / Price
Price
59
Hose Mercedes-Benz
Mercedes-Benz Description: See engine standard version,group: 07. See engine standard version,group: 14. From boot to regeneration valve. Distributor to regeneration valve,left.
MSRP $10.50
$8.69
MSRP $10.50
$8.69
