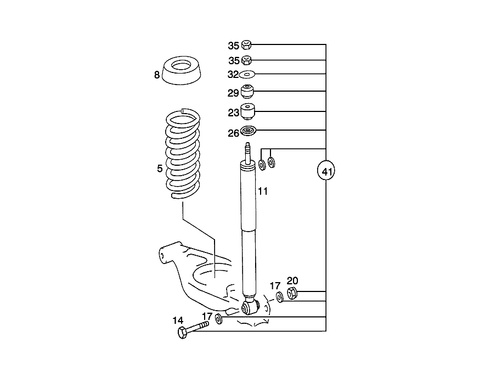

Rear Springs and Suspension Used with Self-Levelling Device for 1986 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
5
Rear Spring
Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE REAR SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.034 -12/86 16 550 ANHAENGEVORRICHTUNG 5
201.034 1/87- 19 411,412 SCHIEBEDACH 3
430 REAR SEAT BENCH HEADRESTS 1
==============================================================================================================================
CHART OF REAR SPRING RUBBER PADS
==============================================================================================================================
TOTAL OF POINTS REAR SPRING PAD PAD
REAR SPRING BLUE REAR SPRING RED
-20 201 324 32 04 201 325 09 44 201 325 10 44
21- 26 201 324 32 04 201 325 10 44 201 325 11 44
27- 201 324 32 04 201 325 11 44
.
==============================================================================================================================
8
MSRP $11.50
$9.38
8
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 (8 mm ). Number of burls: 1 (8mm).
MSRP $7.00
$5.80
MSRP $7.00
$5.80
8
MSRP $9.50
$7.87
11
MSRP $1,070.00
$793.60
14
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to spring control arm. Shock absorber to lower control arm m 10x1x60. Shock absorber to spring control arm m 10x1x60. Pitman arm to steering box assembly m10x1x60. Hydropneumatic spring leg to rear axle.
MSRP $42.50
$35.19
MSRP $42.50
$35.19
17
Washer Mercedes-Benz
Mercedes-Benz Description: Refrigerant compressor to support. Bearing cup to bearing bracket.
MSRP $2.70
$2.21
MSRP $2.70
$2.21
20
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
Diameter: 10mm
Strength / hardness class: 10
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Propeller shaft to transmission. Shock absorber to lower control arm m 10x1. Shock absorber to spring control arm m 10x1. Hydropneumatic spring leg to spring control arm m 10. Shock absorber to frame. Hydropneumatic spring leg to rear axle.
MSRP $4.40
$3.59
MSRP $4.40
$3.59
23
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to frame. Hydropneumatic spring leg to spring control arm.
MSRP $11.00
$8.83
MSRP $11.00
$8.83
26
29
Rubber Bumper Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to frame. Shock absorber to frame. Bumper to body.
32
Window Mercedes-Benz
Mercedes-Benz Notes: BELONGING TO HYDROPNEUMATIC SPRING LEG WITH NUMERICAL MARKING
Description: Hydropneumatic spring leg to frame. Shock absorber to frame to 201 320 09 31, 201 326 15 00. Shock absorber to frame to 201 320 12 31, 201 326 19 00. Shock absorber to frame to 124 320 10 31, 124 320 11 31.
35
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: M10X1
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
Diameter: 10mm
Strength / hardness class: 8
Thread code letter: M
Thread pitch: 1mm
Width across flats: 16mm. Front shock absorbers to frame. Bumper to body. Shock absorber to frame m 10x1. Hydropneumatic spring leg to frame m 10x1.
MSRP $3.70
$3.04
MSRP $3.70
$3.04
