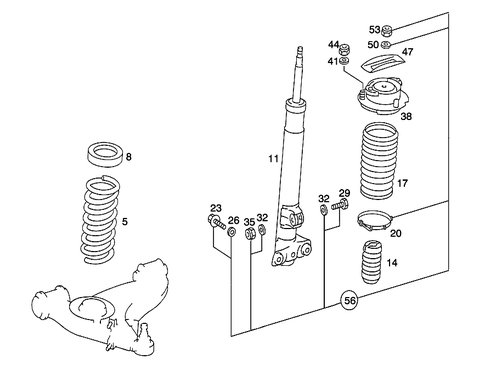

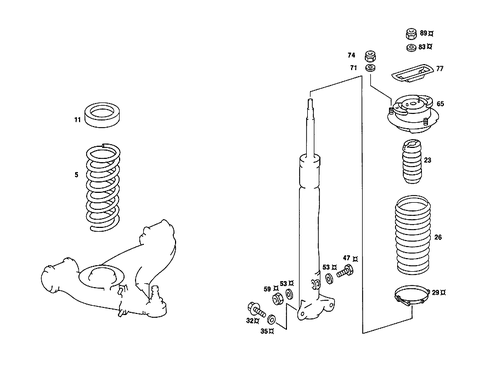

Front Springs and Suspension Standard Suspension for 1986 Mercedes-Benz 190E
No.
Part # / Description / Price
Price
N/A
MSRP $129.00
$101.64
5
Front Spring
Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.034 -12/86 29 580,581 KLIMAANLAGE 7
201.034 1/87- 31 228 ZUSATZHEIZUNG 4
201.034CH -12/86 32 411,412 SCHIEBEDACH 2
201.034CH 1/87- 34 620 KATALYSATOR 2
420 AUTOM.GETRIEBE 2
221,222 ELECTICALLY ADJUSTED FRONT SAET 1
442,291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF THE POINTS FRONT SPRING BOOT BOOT
NORMAL SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
-30 201 321 28 04 201 321 10 84 201 321 11 84
31-36 201 321 28 04 201 321 11 84 201 321 12 84
37-41 201 321 29 04 201 321 09 84 201 321 10 84
42-47 201 321 29 04 201 321 10 84 201 321 11 84
48- 201 321 29 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
Description: As required.
5
Front Axle Spring Mercedes-Benz
Mercedes-Benz Notes: TO ASCERTAIN THE FRONT SPRINGS,PLEASE ADD UP IN THE CHART BELOW THE NUMBERS OF POINTS OF THE RESPECTIVE MODEL AND
OF THE SPECIAL VERSIONS INSTALLED
==============================================================================================================================
MODEL POINTS CODE SPECIAL EQUIPMENT POINTS
201.034 -12/86 29 580,581 KLIMAANLAGE 7
201.034 1/87- 31 228 ZUSATZHEIZUNG 4
201.034CH -12/86 32 411,412 SCHIEBEDACH 2
201.034CH 1/87- 34 620 KATALYSATOR 2
420 AUTOM.GETRIEBE 2
221,222 ELECTICALLY ADJUSTED FRONT SAET 1
442,291 AIR BAG 1
481 UNDERSHIELD (STEEL PLATE) 1
600 HEADLAMP WIPER/WASHER 1
==============================================================================================================================
TABLE FRONT SPRING - RUBBER BOOT
==============================================================================================================================
SUM OF THE POINTS FRONT SPRING BOOT BOOT
NORMAL SPRINGS WITH BLUE FRONT SPRING W/ RED FRONT SPRING
-30 201 321 28 04 201 321 10 84 201 321 11 84
31-36 201 321 28 04 201 321 11 84 201 321 12 84
37-41 201 321 29 04 201 321 09 84 201 321 10 84
42-47 201 321 29 04 201 321 10 84 201 321 11 84
48- 201 321 29 04 201 321 11 84 201 321 12 84
.
==============================================================================================================================
Description: As required.
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 2 (13 mm). With spring color code in red 2 (13 mm).
MSRP $9.75
$8.00
MSRP $9.75
$8.00
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 3 (18 mm).
MSRP $10.00
$8.28
MSRP $10.00
$8.28
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 4 (23 mm). Number of burls: 4 (32 mm).
11
Helical Spring Shim Mercedes-Benz
Mercedes-Benz Description: As required. Number of burls: 1 ( 8 mm). With spring color code in blue 1 (8 mm).
MSRP $8.50
$6.90
MSRP $8.50
$6.90
23
MSRP $18.50
$15.18
29
MSRP $1.40
$1.10
32
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: Hydropneumatic spring leg to steering knuckle,bottom. Damper strut to steering knuckle, bottom m12x1,5x 16. Shock absorber to steering knuckle, bottom.
MSRP $4.90
$4.00
MSRP $4.90
$4.00
35
Window Mercedes-Benz
Mercedes-Benz Description: Damper strut to steering knuckle, bottom. Hydropneumatic spring leg to steering knuckle,bottom. Shock absorber to steering knuckle, bottom. Damper strut to steering knuckle,top.
MSRP $2.40
$1.93
MSRP $2.40
$1.93
47
Screw Mercedes-Benz
Mercedes-Benz Description: Shock absorber to steering knuckle,top. Damper strut to steering knuckle,top m 12x40.
59
Nut Mercedes-Benz
Mercedes-Benz Description: Damper strut to steering knuckle,top m 12. Hydropneumatic spring leg to steering knuckle,top. Shock absorber to steering knuckle,top.
MSRP $6.00
$4.83
MSRP $6.00
$4.83
71
MSRP $3.00
$2.48
74
MSRP $3.90
$3.17
83
Washer Mercedes-Benz
Mercedes-Benz Description: DAMPER STRUT TO RUBBER MOUNTINGDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. SHOCK ABSORBER TO FRAMEDiameter: 15mmInside diameter: 15mmOutside diameter: 24mmMaterial thickness: 2,5mm. TO BUMPER AT TOPDiameter: 15mmInsi ...
MSRP $1.00
$0.83
MSRP $1.00
$0.83
89
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Lower control arm to front subframe. Shock absorber to frame. Lower control arm to steering knuckle.
92
Fastening Parts Mercedes-Benz
Mercedes-Benz Description: Damper strut mounting,front. Shock absorber mounting,rear. Shock absorber mounting,front.
No.
Part # / Description / Price
Price
11
Shock Absorber Mercedes-Benz
Mercedes-Benz Notes: FASTENING PARTS NOT PART OF DELIVERY SPEC., PLEASE ORDER SEPARATELY
Description: Only for use with subsequent conversion to sports version.
